RAG Evaluation Pipeline

13 pipeline configurations, 75 labeled QA pairs, two audiences — which RAG stack actually wins?

The question. Everyone ships RAG; few measure it. For UC Berkeley’s Generative AI course final, I built a retrieval-augmented generation proof of concept that answers AI/ML questions for two internal audiences (a several-hundred-person engineering org and a 40-person marketing team) — and then evaluated 13 pipeline configurations against 75 labeled question-answer pairs to find out what actually helps.

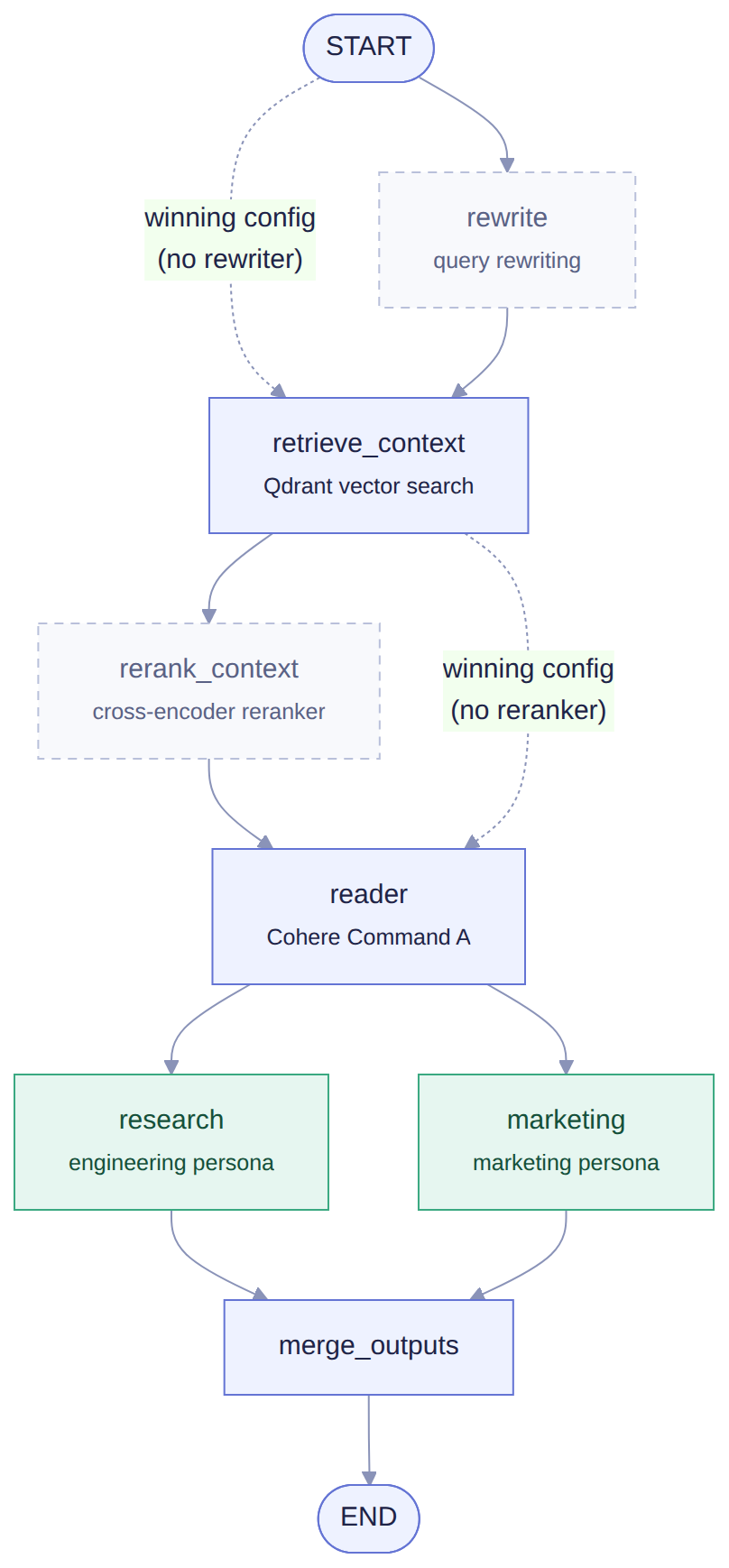

The LangGraph state machine as actually built: retrieval into a shared reader, fanning out to parallel research and marketing persona nodes before a merge. Dashed nodes (query rewriter, cross-encoder reranker) are config-gated — the winning configuration runs without them.

How it works. The harness varies chunk size, query rewriting, reranking, and generator model (Cohere command-a vs. command-r vs. an optimized configuration), scoring each configuration per-persona with BERTScore (roberta-large embeddings), ROUGE, and faithfulness metrics — plus adversarial out-of-domain probes to catch confident nonsense.

Results. A minimal stack won: no query rewriter, no reranker, small chunks, Cohere Command A — BERT-F1 of 0.876 (engineering persona) and 0.881 (marketing), faithfulness above 0.87 for both, at a projected serving cost under 100 USD/month versus 1,500+ USD/month for reserved GPU capacity.

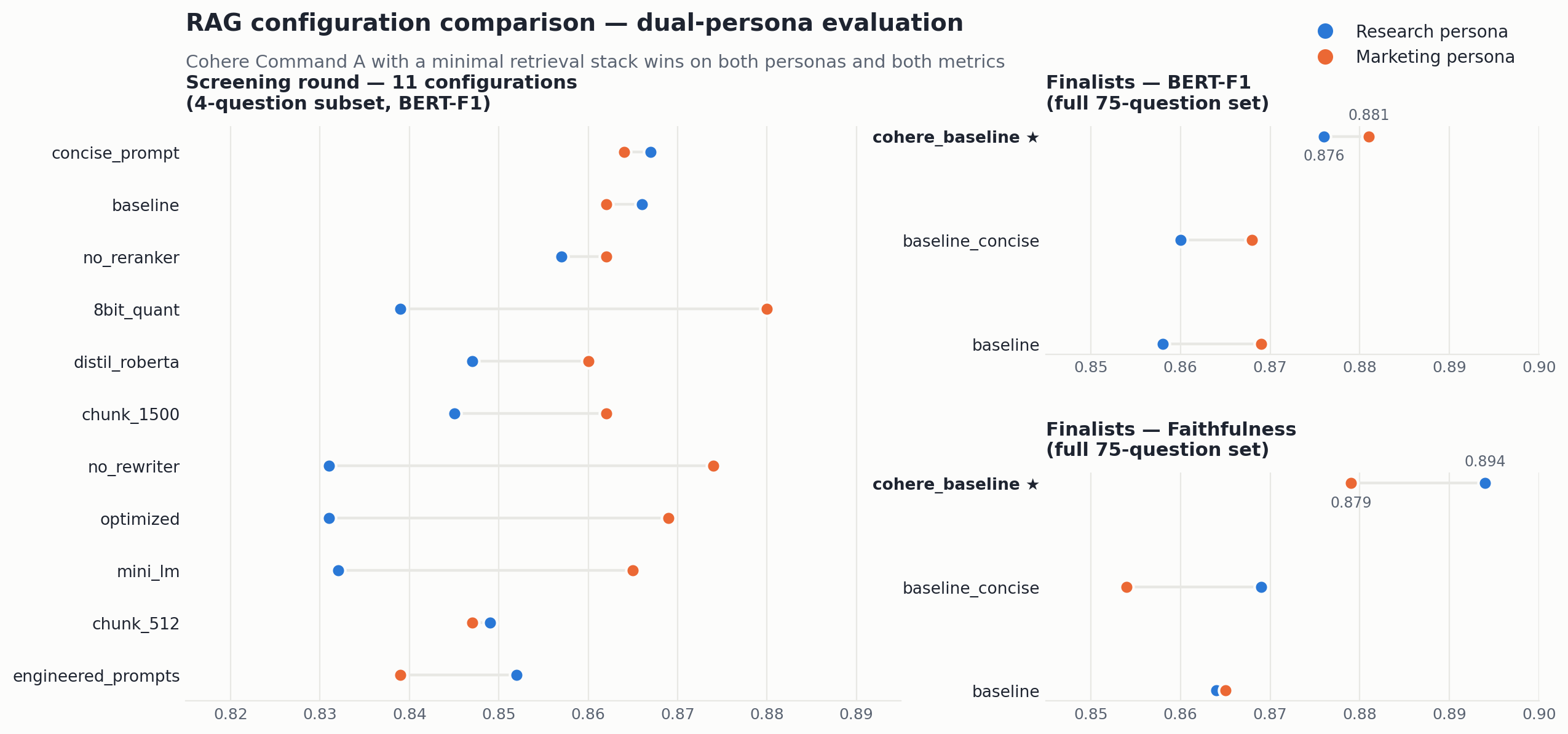

The full comparison: eleven configurations screened on a 4-question subset (left, sorted by mean BERT-F1), then the three finalists benchmarked on all 75 questions (right) — the Cohere baseline wins both metrics for both personas.

Two findings I’d carry into production: 128-token chunks score well in aggregate but truncate detail retrieval, and out-of-domain queries sail through with irrelevant context — the system needs a relevance gate before it can be trusted.

Solo project.

Links. Repository · Full evaluation report (PDF)
